| Quantity: | |
|---|---|

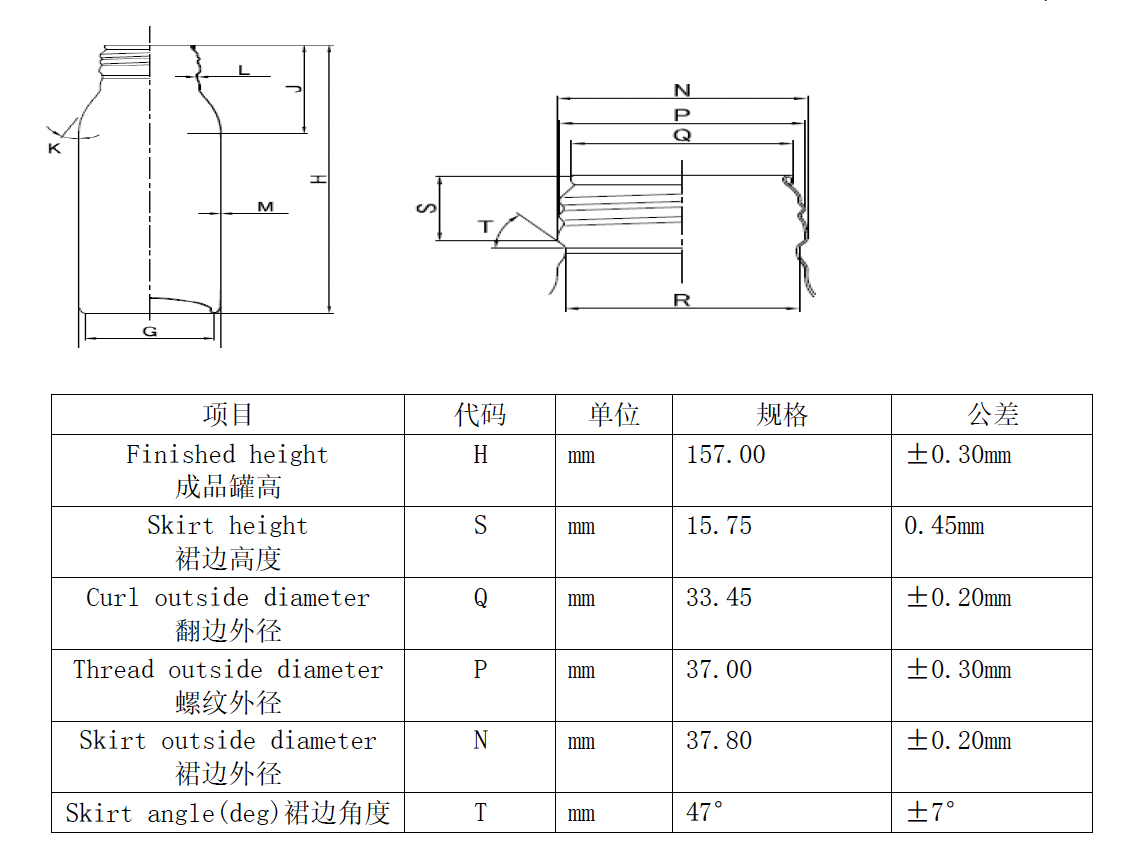

Project | Code | Unit | Specifications | Public Errand |
Finished height | H | mm | 157.00 | ±0.30mm |
Skirt height | S | mm | 15.75 | 0.45mm |
Curl outside diameter | Q | mm | 33.45 | ±0.20mm |
Thread outside diameter | P | mm | 37.00 | ±0.30mm |
Skirt outside diameter | N | mm | 37.80 | ±0.20mm |
Skirt angle(deg) | T | mm | 47° | ±7° |

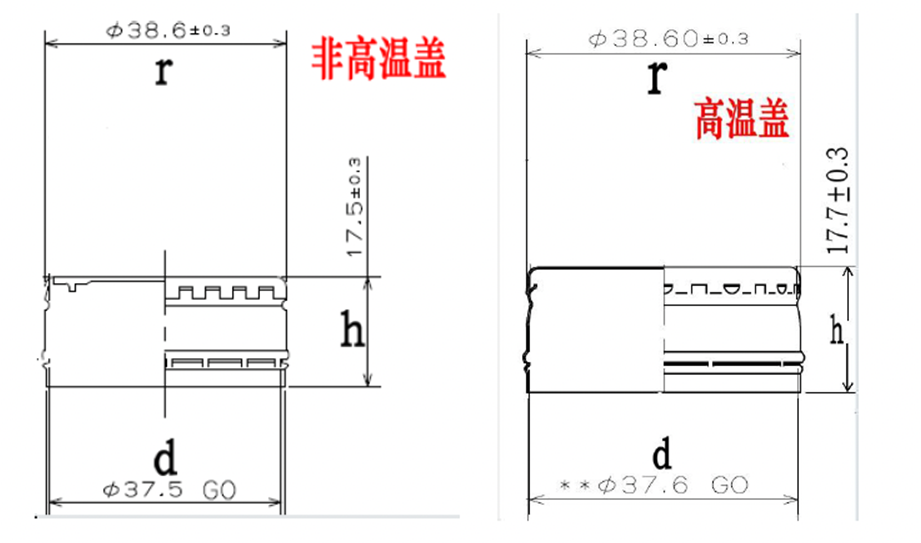

Aluminum Cap 38mm Diameter Quality Standard pecifications
Project | Code | Unit | Specifications | Public Errand | |
Height | h | mm | 17.5 | 17.5 | ±0.3mm |
Outer diameter | r | mm | 38.6 | 38.6 | ±0.3mm |
Inner diameter | d | / | Φ37.5 Core shaft head passes through | Φ37.6 Core shaft head passes through | / |
Raw Material
Item | Alloy & temper |
Can stock | 3104 |
End | 3105 |
Interior coating
Item | Coating material | Remark |
Can | Modified Epoxy | / |
End | Modified epoxy | / |
Exterior coating
Item | Coating material | Remark |
Can | Polyester /Acrylic | 8 colour printing capability |
End | Polyester resin | / |
Gasket
Item | Gasket type | Remark |
Gasket | Polyethylene | / |
