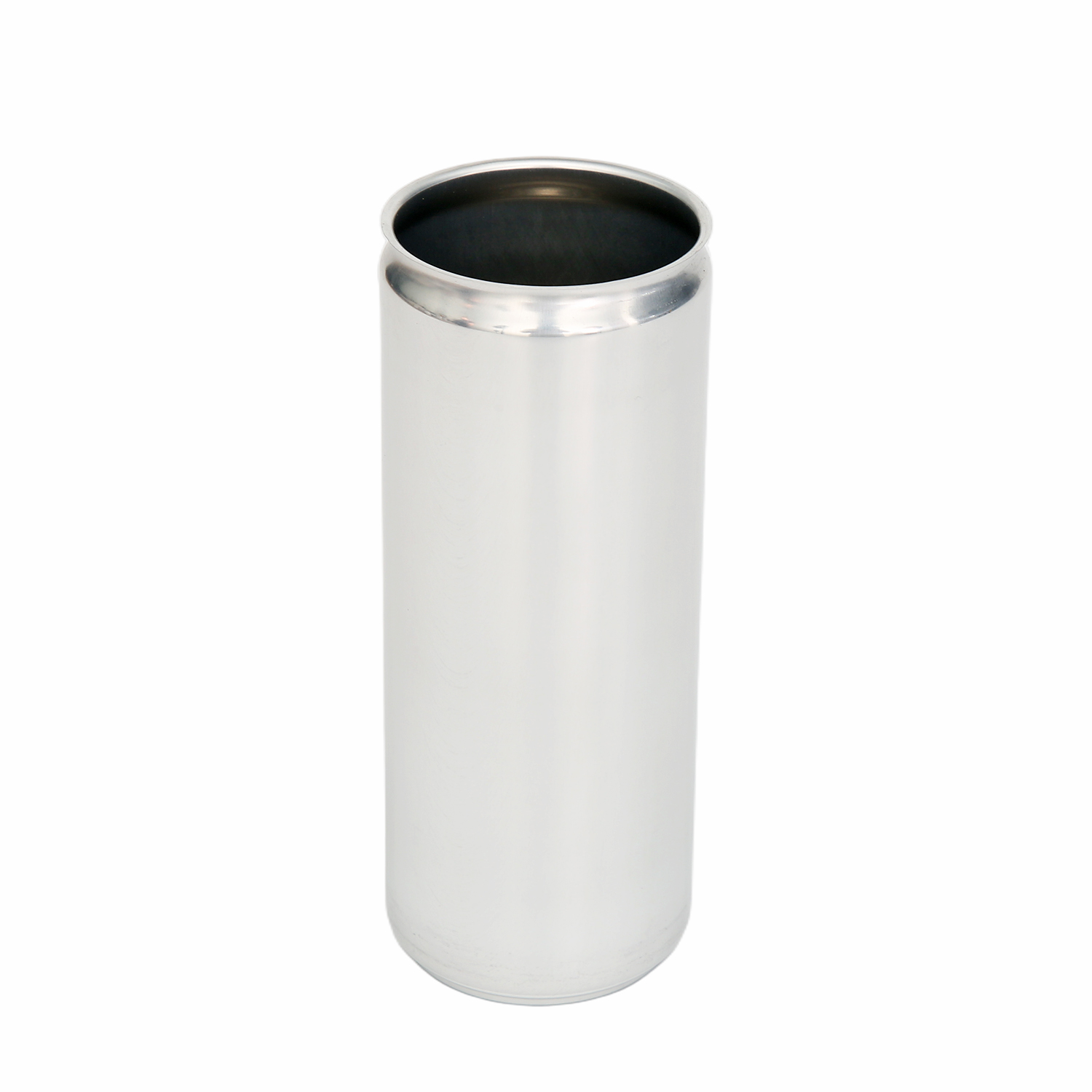

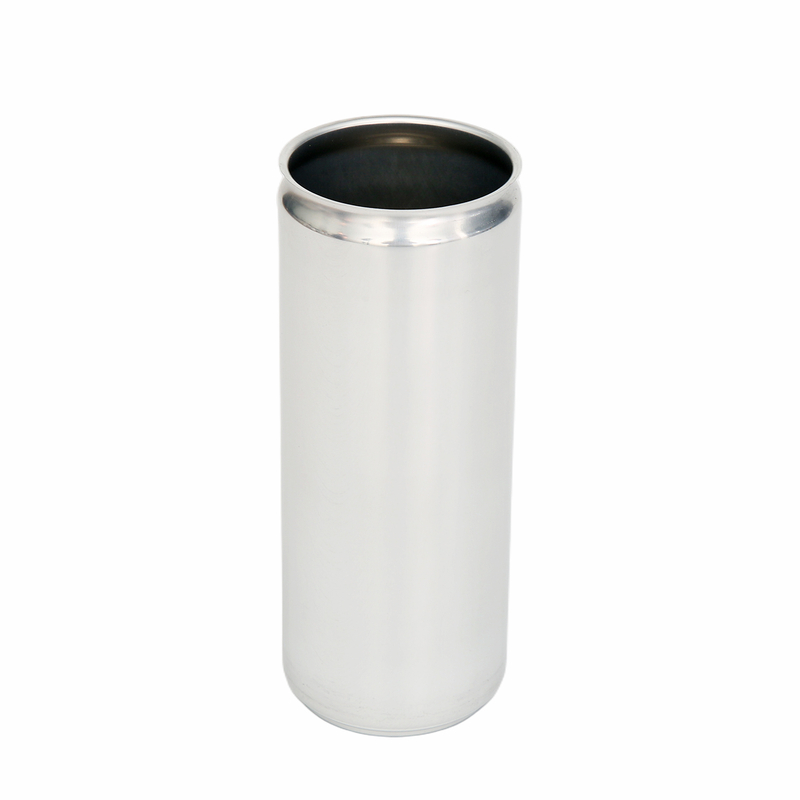

PIECE SLEEK ALUMINIUM CAN AND

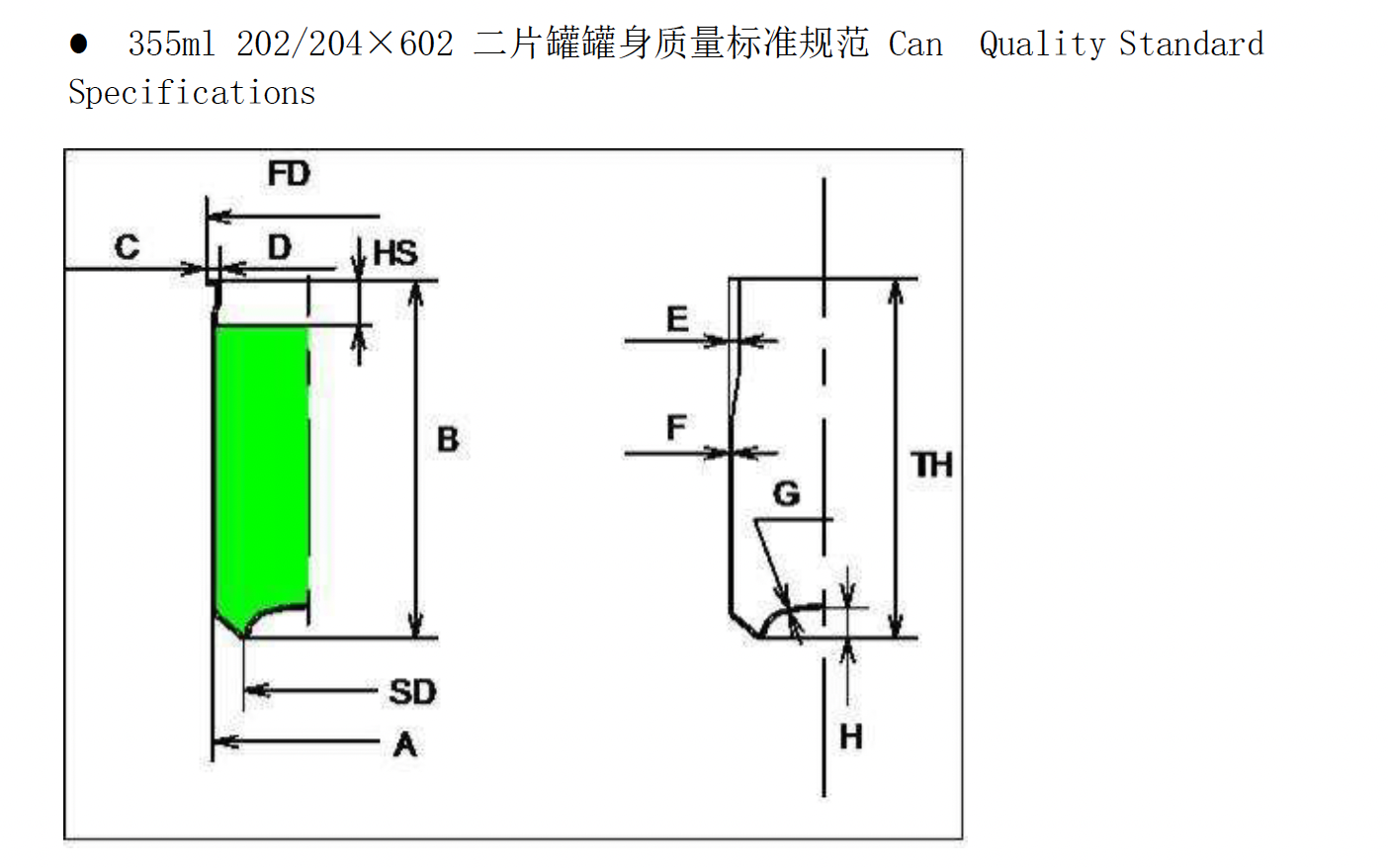

355ml 202/204×602 Can Quality Standard Specifications
Item | Unit | Size | Tolerance | |
Body outside diameter | A | mm | 57.5 | Reference |
Flanged can height | B | mm | 155.75 | ± 0.25 |
Flange width | C | mm | 2.1 | ± 0.25 |
Neck plug diameter | D | mm | 52.40 | ± 0.25 |
Bottom center depth | H | mm | 10.30 | ± 0.3 |
Base Rim Diameter | SD | mm | 47.24 | Reference |
Bottom buckle resistance | Kpa | ≥610 | Minimum | |
Column strength | N | ≥1000 | Minimum | |
Overflow capacity | ml | 381 | ± 3 | |
E.R.V enamel rater value | General | mA | Max≤25MA, Avgs≤5MA | |
1. Raw material
Item | Alloy & temper | Stock gauge |
Can stock | 3104–H19 | 0.282±0.005 mm |
End | 5182–H48 | 0.240±0.005 mm |
2. Interior coating
Item | Coating material | Remark |
Can | Modified Epoxy | / |
End | Modified epoxy | / |
3. Exterior coating
Item | Coating material | Remark |
Can | Polyester / Acrylic | 8 colour printing capability |
End | Modified Epoxy | / |
4. Sealing compound
Item | Rubber type | Remark |
Rubber | Styrene / Butadiene | / |
