Raw Material
1. Interior coating
Item | Coating material | Remark |
Can | Modified Epoxy | / |
End | Epoxy | / |
2. Exterior coating
Item | Coating material | Remark |
Can | Polyester resin | 8 colour printing capability |
End | Polyester resin | / |
3. Gasket
Item | Gasket type | Remark |
Gasket | Polyethylene | / |

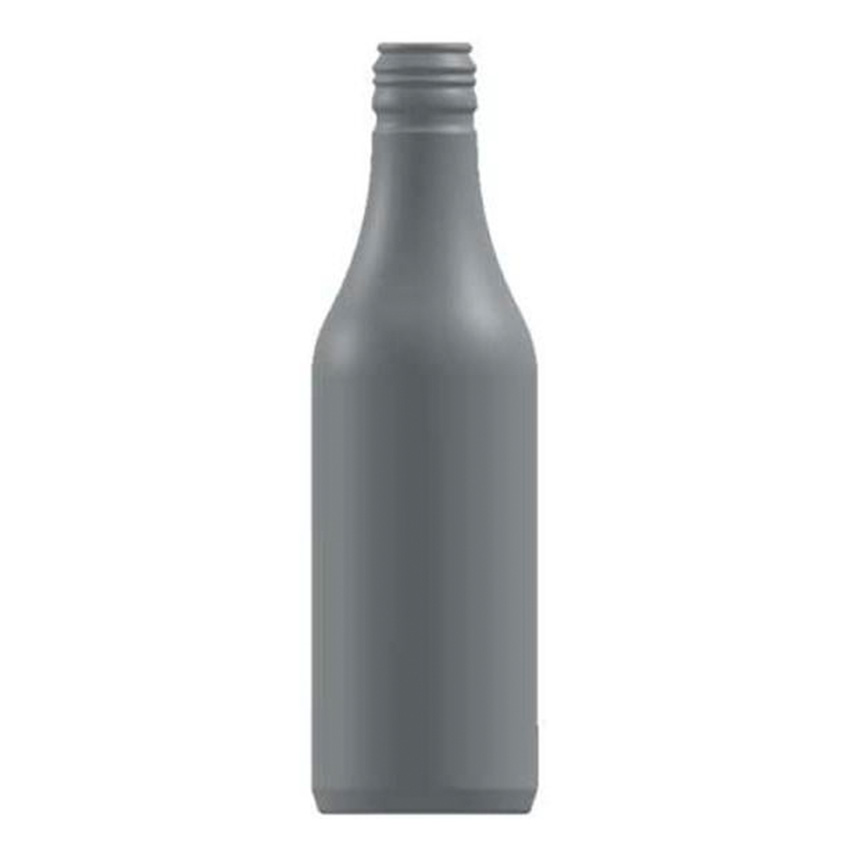

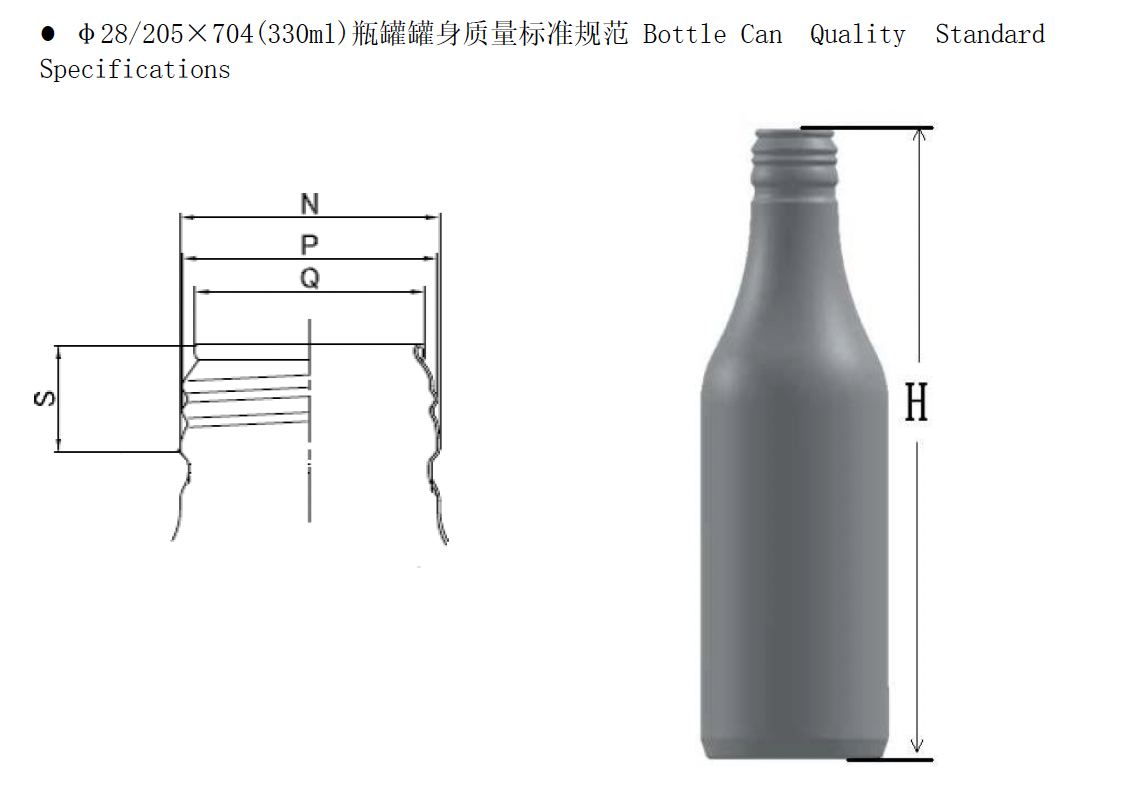

● φ28/205×704(330ml)Bottle Can Quality Standard Specifications
Item | Code | Unit | Specification | Tolerance |
Finished height | H | mm | 183.8 | ±0.25 |
Skirt height | S | mm | 16.30 | +/−0.30 |
Curl outside diameter | Q | mm | 24.85 | ±0.20mm |
Thread outside diameter | P | mm | 27.15 | ±0.30mm |
Skirt outside diameter | N | mm | 28.00 | +0.15/−0.30 |

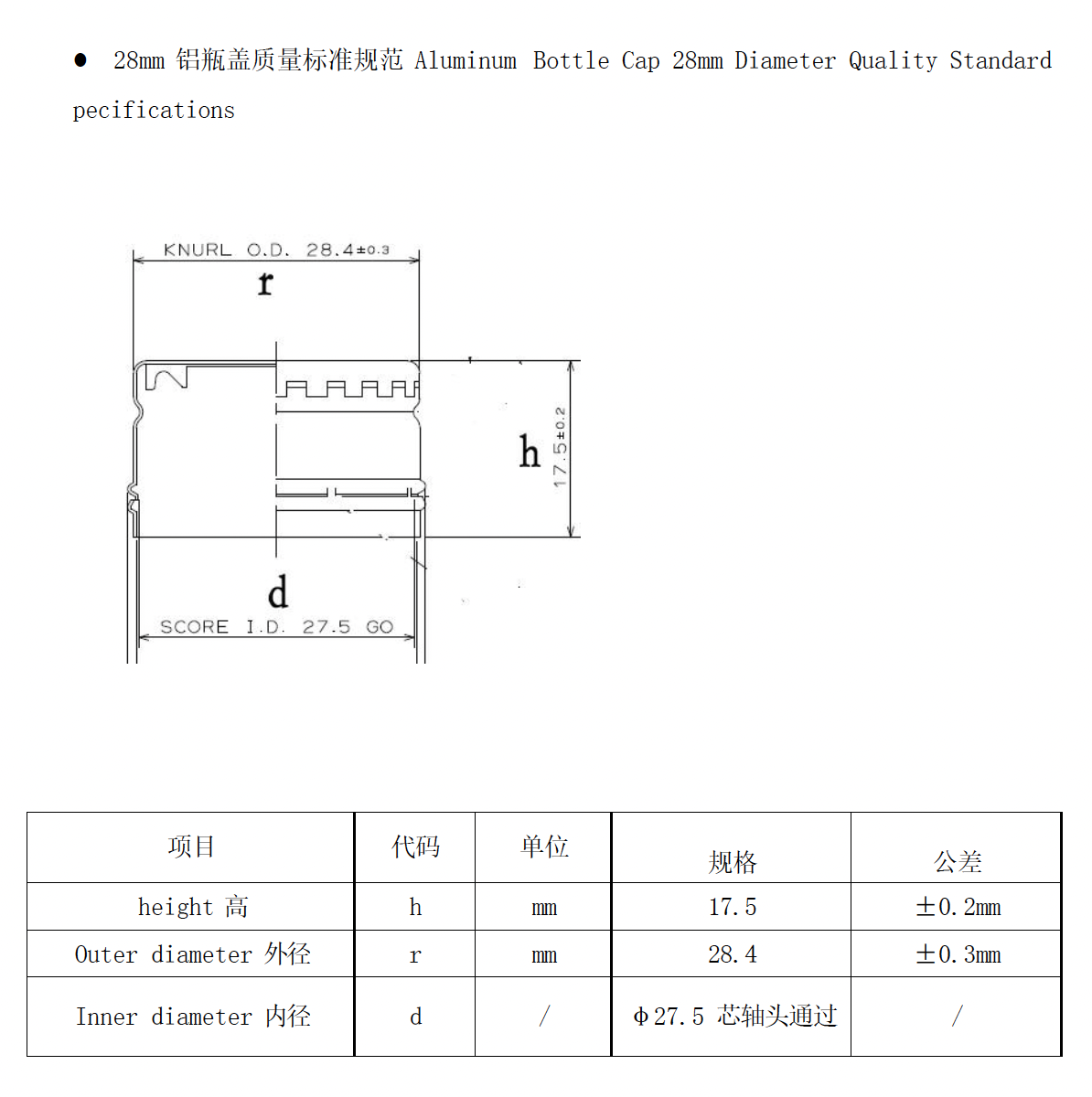

28mmAluminum Bottle Cap28 mm Diameter Quality Standard pecifications
Item | Code | Unit | Specification | Tolerance |
height | h | mm | 17.5 | ±0.2mm |
Outer diameter | r | mm | 28.4 | ±0.3mm |
Inner diameter | d | / | Φ27.5Mandrel head through | / |
