| Quantity: | |
|---|---|
Item | Rubber type | Remark |
Rubber | Styrene / Butadiene | Water based |

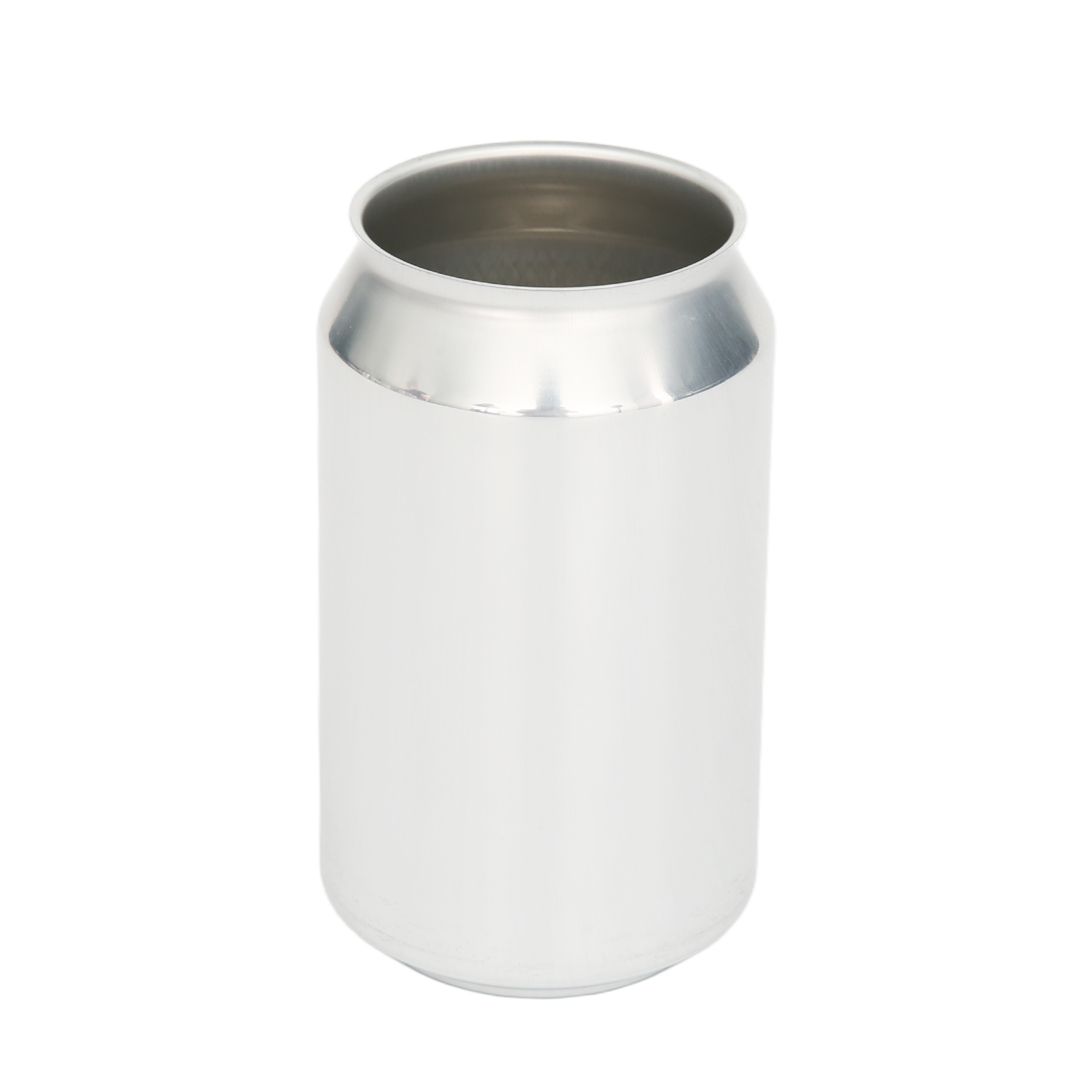

PIECE SPIN NECK ALUMINIUM CAN AND END

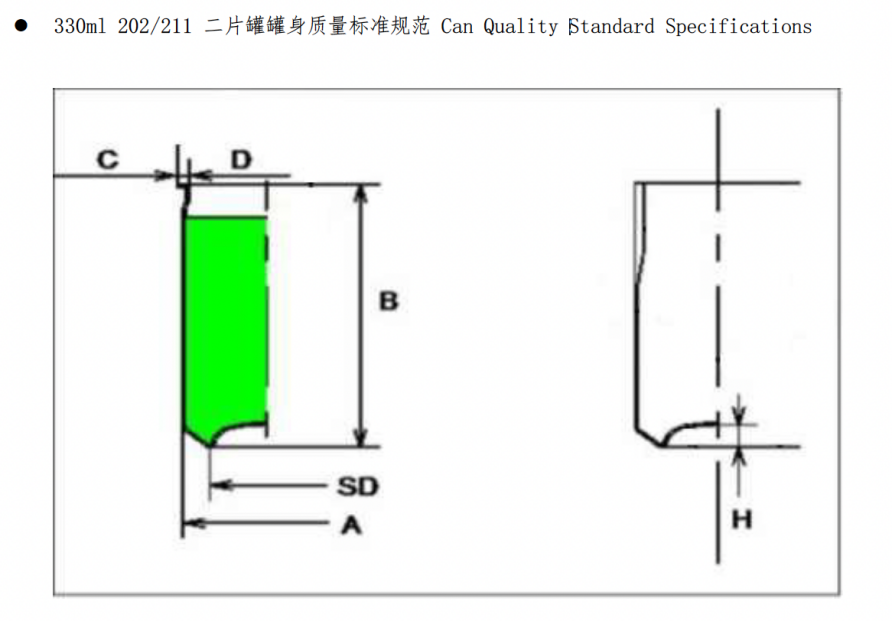

● 330ml 202/211 Can Quality Standard Specifications
Item | Unit | Size | Tolerance | |
Body outside diameter | A | mm | 66.24 | Ref |
Flanged can height | B | mm | 115.20 | ± 0.25 |
Flange width | C | mm | 2.13 | ± 0.25 |
Neck plug diameter | D | mm | 52.40 | ± 0.13 |
Bottom center depth | H | mm | 10.92 | ± 0.13 |
Base Rim Diameter | SD | mm | 48.01 | Ref |
Bottom buckle resistance | Kpa | ≥610 | Minimum | |
Column strength | N | ≥1000 | Minimum | |
E.R.V enamel rater value | Beer | mA | Max≤75MA ，Avg≤30MA | |
General | mA | Max≤30MA ，Avg≤8MA | ||
Raw Material
Item | Alloy &temper |
Can stock | 3104–H19 |
End | 5182–H48 |
1. Interior coating
Item | Coating material | Remark |
Can | Modified Epoxy | Water based |
End | Modified epoxy | Solvent based |
2. Exterior coating
Item | Coating material | Remark |
Can | Polyester / Acrylic | Water based Over-varnish Basecoat / 8 colour printing capability |
End | Modified Epoxy | Solvent based |
