1. Raw Material
1. Metal | |
Item | Alloy & temper |
Body | 3104–H19 |
End | 5182–H48 |
2. Interior coating
Item | Material |
Body | Modified Epoxy（Water based） |
End | Modified Epoxy（Solvent based） |
1. Exterior coating
Item | Material |
Body | Water based Over–varnish Basecoat(Polyester/Acrylic)，Print within 8 colors |
End | Modified Epoxy（Solvent based） |
1. Sealing compound
Item | Material |
Rubber | Synthetic/Natural Rubber（Water based） |

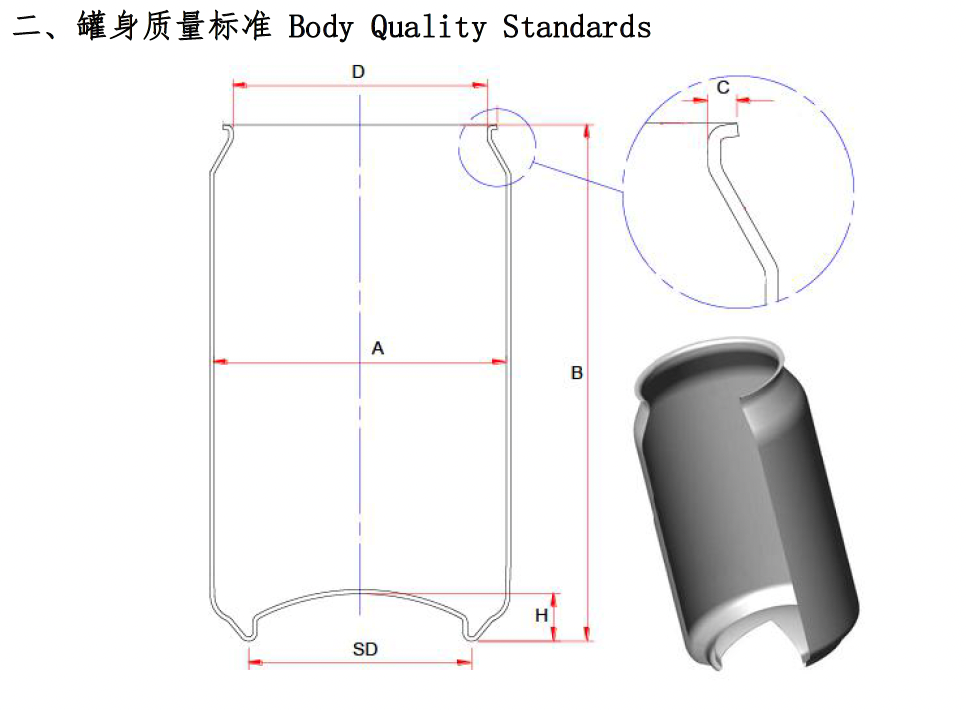

2. Body Quality Standards
Item | Code | Unit | Size | Tolerance |
Body Outside Diameter | A | mm | 66.10 | Ref |
Flanged Can Height | B | mm | 122.22 | ±0.38 |
Flange Width | C | mm | 2.10 | ±0.25 |
Neck Plug Diameter | D | mm | 52.40 | ±0.25 |
Dome Depth | H | mm | 11.60 | ±0.25 Ref |
Base Diameter | SD | mm | 48.01 | Ref |
Dome Reversal | / | kPa | ≥610 | Min. |
Column Strength | / | N | ≥800 | Min. |
Overflow Capacity | / | ml | 382 | ±3 |
Enamel Rating | Beer | mA | Max≤75，Avg≤35 | |
Beverage | mA | Max≤25，Avg≤5 | ||
